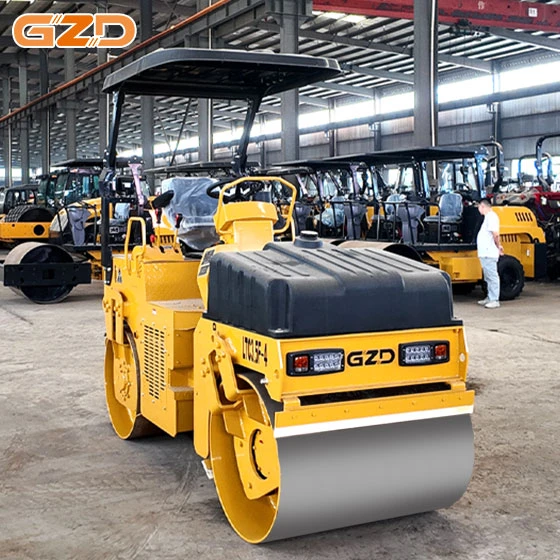

3.5 Ton Mechanical Drive Double Drum Vibratory Road Roller

The GZD Model LTC3.5F-4 is a 3.5-ton mechanical drive double drum vibratory road roller engineered specifically for contractors who need reliable, maneuverable compaction in the tightest workspaces. Where full-size rollers cannot go — narrow municipal alleys, pipeline trenches, building foundation backfills, sports field subgrades — the LTC3.5F-4 delivers consistent, high-density compaction without compromise. Powered by a 28 kW Quanchai V20-38C41 diesel engine compliant with China Stage IV emission standards, this compact tandem roller combines a fork-type frame structure, mechanical gear drive transmission, hydraulic articulated steering, and hydraulic front-drum vibration into one cost-effective package built for years of demanding site work.

With a minimum turning radius of just 4,500 mm, a compact footprint of 2,830 × 1,420 × 2,650 mm, and a drum width of 1,090 mm, the LTC3.5F-4 maneuvers easily through confined spaces while delivering 35 kN of centrifugal force at 50 Hz — enough to achieve target density on asphalt wearing courses, granular subbases, and cohesive soil backfills alike. Three forward speed gears (2.4 / 5.0 / 7.8 km/h) give operators the flexibility to match travel speed to material type and lift thickness, and two independent braking systems (hand brake + foot pedal) ensure safe operation on slopes up to 20% grade.

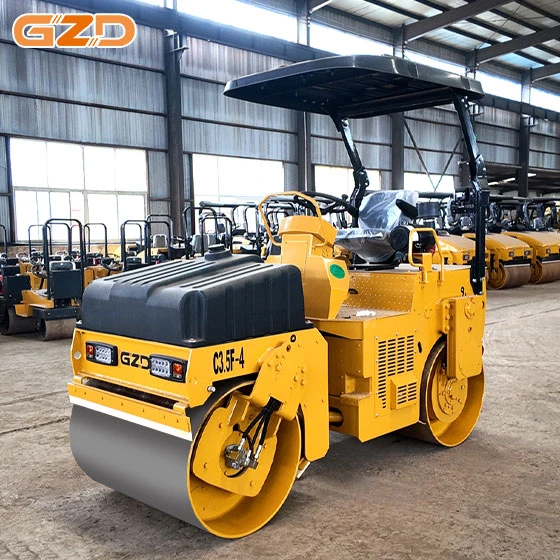

Fork-Type Frame & Hydraulic Articulated Steering — Built for Tight Corners

At the heart of the LTC3.5F-4’s agility is its fork-type articulated frame combined with hydraulic power steering. Unlike rigid-frame alternatives, this configuration allows the front and rear halves of the machine to pivot independently through a steering angle of ±30°, achieving a 4,500 mm turning radius that lets operators work flush against curbs, walls, and trench edges without repositioning. The frame’s heavy-gauge steel construction absorbs torsional stress across uneven terrain, maintaining drum-ground contact and preventing bridging — a common problem when compacting graded granular bases. For contractors handling municipal road shoulder repairs, underground utility trench reinstatement, and building footprint backfill, this level of maneuverability directly translates to fewer machine passes, lower fuel burn, and measurable time savings per job site.

Mechanical Gear Drive with Optimized Transmission — Low Maintenance, High Durability

The LTC3.5F-4 employs a mechanical gear drive system featuring a high-strength, large-module gear train that replaces conventional chain-side drive mechanisms. This design choice matters: gear transmission delivers higher mechanical efficiency with lower parasitic power loss compared to chain drives, and it eliminates the periodic chain tensioning, sprocket wear, and lubrication adjustments that drive up maintenance costs on chain-driven rollers. The large-module gears are case-hardened for extended service life under high-torque, low-speed operating conditions typical of compaction work. For fleet managers and owner-operators in price-sensitive markets across Southeast Asia, Africa, and the Middle East, the mechanical drive approach means lower upfront capital cost than hydrostatic alternatives, simpler field serviceability with widely available spare parts, and a maintenance routine any diesel mechanic can handle.

Three forward speed gears — 2.4 km/h for deep-lift soil compaction, 5.0 km/h for standard asphalt mat rolling, and 7.8 km/h for finish rolling and site travel — give the operator precise speed control without the complexity of infinitely variable hydrostatic transmissions. This three-speed gearbox is proven technology, field-tested across thousands of units in global construction markets.

3.3 China Stage IV Diesel Engine — Compliant Power, Global Fuel Flexibility

Powering the LTC3.5F-4 is the Quanchai V20-38C41, a 28 kW (37.5 HP) four-stroke direct-injection diesel engine certified to China Stage IV emission standards — equivalent in stringency to EU Stage IIIB / U.S. EPA Tier 4 Interim. This emissions compliance matters for government-tendered municipal projects in countries adopting stricter environmental regulations, and it future-proofs the machine against tightening import standards in key export markets.

The engine’s high-pressure common-rail fuel system delivers precise fuel metering across the rpm range, resulting in lower specific fuel consumption than mechanically governed alternatives. A large-capacity fuel tank supports full-shift operation without refueling, and the wide-opening engine hood provides unobstructed access to the oil dipstick, fuel filter, air cleaner, and coolant reservoir — daily inspections that take under five minutes keep the LTC3.5F-4 on the job, not in the shop.

Operator Comfort & Site-Ready Practicality

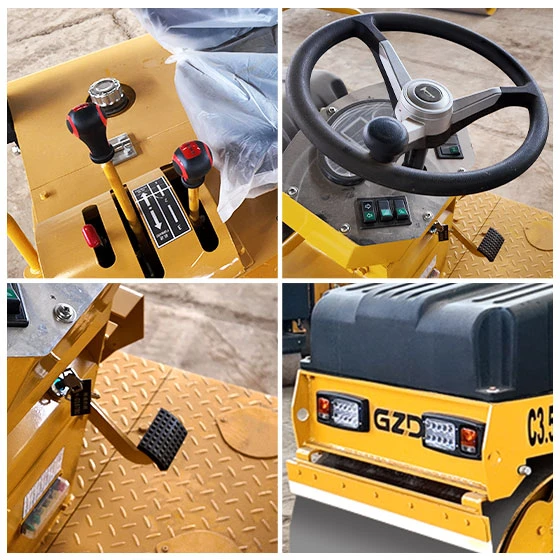

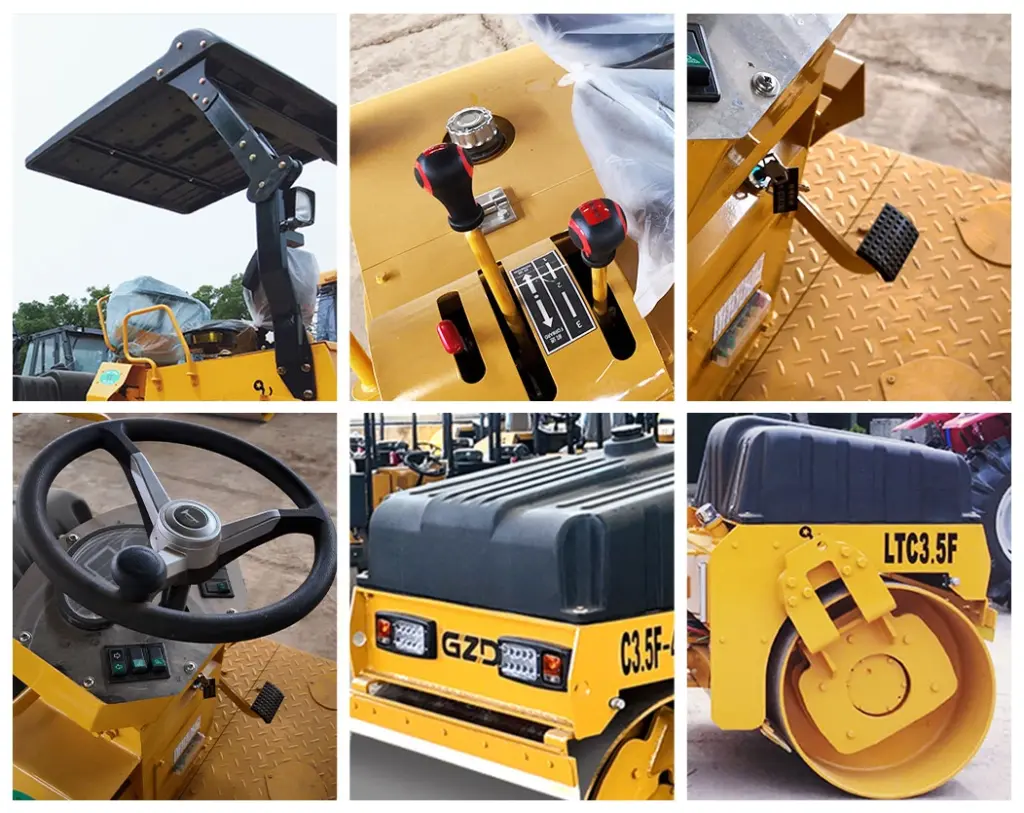

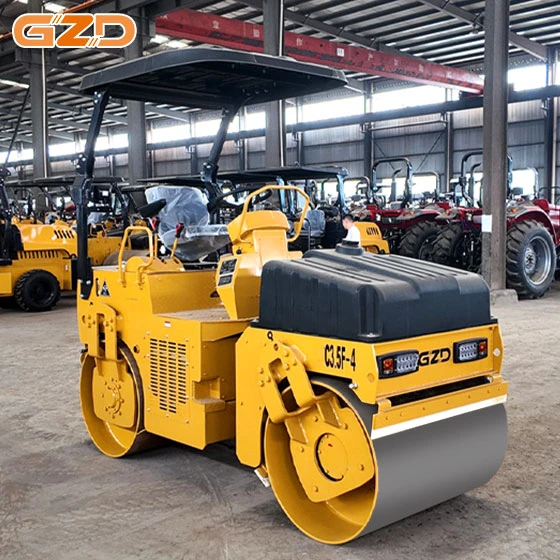

The LTC3.5F-4 is designed with the operator in mind, not as an afterthought. A floating adjustable suspension seat isolates the operator from drum vibration, reducing fatigue over 8–10 hour shifts. The integrated LLDPE rotomolded canopy sheds rain, blocks direct sun, and withstands UV exposure and jobsite impacts without rusting or cracking — unlike painted steel canopies that corrode in humid coastal and tropical environments. The canopy and water tank share the same advanced rotomolding process, a deliberate engineering choice that shaves weight, eliminates weld seams, and improves overall machine aesthetics.

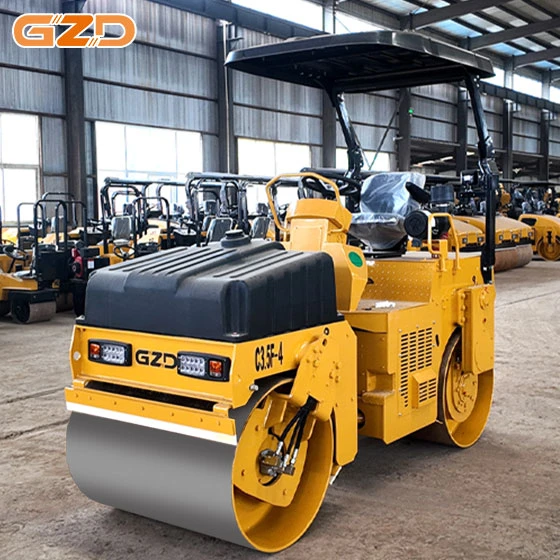

Standard dual-drum water spray with adjustable-gap mud scrapers on both front and rear steel drums prevents asphalt pickup and material adhesion, keeping drum surfaces clean for uniform surface finish. The 200-liter rotomolded water tank provides extended spray intervals — a practical advantage when working on hot-mix asphalt where consistent drum cooling is critical to mat quality. For contractors who demand more precise water control, an optional high-pressure electric water pump system supports intermittent or continuous spray modes, selectable at the operator’s discretion.

Case 1: Municipal Road Rehabilitation — Nairobi, Kenya

Project: Kilimani residential district road resurfacing (3.2 km, 7 m wide) Contractor: Local municipal works contractor Equipment deployed: 1 × GZD LTC3.5F-4 + 1 × asphalt paver Challenge: Narrow residential streets with parked vehicles on both sides; maximum equipment width constrained to 1.5 m. Solution: The LTC3.5F-4’s 1,420 mm overall width and 4,500 mm turning radius allowed single-lane compaction behind the paver without striking parked cars or encroaching onto private driveways. The operator used 2nd gear (5.0 km/h) for breakdown rolling and 3rd gear (7.8 km/h) for finish passes, completing the full 22,400 m² in 6 working days. Result: Final density exceeded 96% Marshall for the 40 mm asphalt wearing course. The contractor saved an estimated $2,400 in equipment rental by using the LTC3.5F-4 instead of hiring a 6-ton roller for narrow-lane work.

Case 2: Water Pipeline Trench Backfill — Manila, Philippines

Project: 12 km DN600 ductile iron water transmission main installation (Subic-Clark corridor) Contractor: Filipino-Chinese joint venture infrastructure firm Equipment deployed: 2 × GZD LTC3.5F-4 (rotating shifts) Challenge: 1.2 m wide trench with granular backfill required compaction to 95% Modified Proctor density per project specification; trench alignment ran through mixed agricultural and roadside terrain with grades up to 15%. Solution: Two LTC3.5F-4 units worked in tandem — the lead unit performed breakdown compaction in 1st gear (2.4 km/h, 4–6 passes), and the follow-up unit handled finishing passes. Each roller completed approximately 250–300 linear meters of trench compaction per 10-hour shift. The 200L water tanks required refill only once per shift during dry-season dust suppression. Result: Independent QA/QC testing confirmed 96.5% average density across 120 test points. The project was completed 18 days ahead of the compaction work schedule, saving an estimated $7,800 in project overhead.

Case Study 3: Sports Complex Subgrade — Lagos, Nigeria

Project: 5-field community sports complex (football pitches + running track subgrade) Contractor: Nigerian sports infrastructure developer Equipment deployed: 1 × GZD LTC3.5F-4 Challenge: 15,000 m² of lateritic gravel subgrade required uniform compaction ahead of artificial turf installation; frequent afternoon rain showers during construction season risked softening the exposed subgrade. Solution: The LTC3.5F-4’s mechanical drive proved essential in wet conditions — where hydrostatic transmissions are vulnerable to water ingress and belt-slip failures, the sealed gear drive continued operating reliably through multiple rain events. The operator used 2nd gear (5.0 km/h) for production rolling and the adjustable scrapers to clear sticky lateritic clay from the drums after each rain shower. Result: All five field subgrades met the 92% CBR specification required for FIFA-standard artificial turf installation. The contractor ordered a second LTC3.5F-4 unit for an upcoming stadium renovation project in Abuja.
