Product Description
Double Gun High-Efficiency Operation
The double spray gun system enables simultaneous dual-line marking or single-line operation. Doubles work efficiency compared to single-gun machines. Ideal for highway center lines and edge lines marking.
High-Pressure Airless Spraying Technology
The 22.8MPa working pressure ensures uniform paint atomization and strong adhesion. Produces clean, sharp lines without burrs or irregular edges. Paint penetrates road surface for long-lasting markings.
Brand Engine Power System
Available with Loncin or Honda gasoline engines. Powerful 5.5-6.5HP output for continuous operation. Low fuel consumption and reliable performance in various working conditions.
Adjustable Spray Width Design
Spray width adjustable from 5cm to 45cm. Accommodates various marking requirements from narrow bike lanes to wide highway dividers. Quick adjustment without tools.
Ergonomic Operation Design
Comfortable handle with easy forward and backward movement. Sensitive handbrake for safe operation. Thickened and widened tires provide excellent shock absorption and stability.
Precision Positioning System
Lockable guide wheel ensures straight line marking without deviation. Accurate and consistent line quality. Reduces rework and material waste.
Technical Specifications
| Parameter | GZD Cold Spray Road Line Marking Machine |
| Power | 5.5-6.5HP Loncin/Honda Engine |
| Spray Gun Quantity | Double Guns |
| Spray Flow Rate | 3.2-5.2 L/min |
| Working Pressure | 22.8 MPa |
| Scribing Speed | 500 m/h |
| Spray Width | 5-45 cm (Adjustable) |
| Package Size | 950 × 670 × 820 mm |
| Net Weight | 76 kg |
| Gross Weight | 103 kg |
| Origin | China |
| Brand | GZD |
| Stock Status | Ready Stock |
Profitable Applications

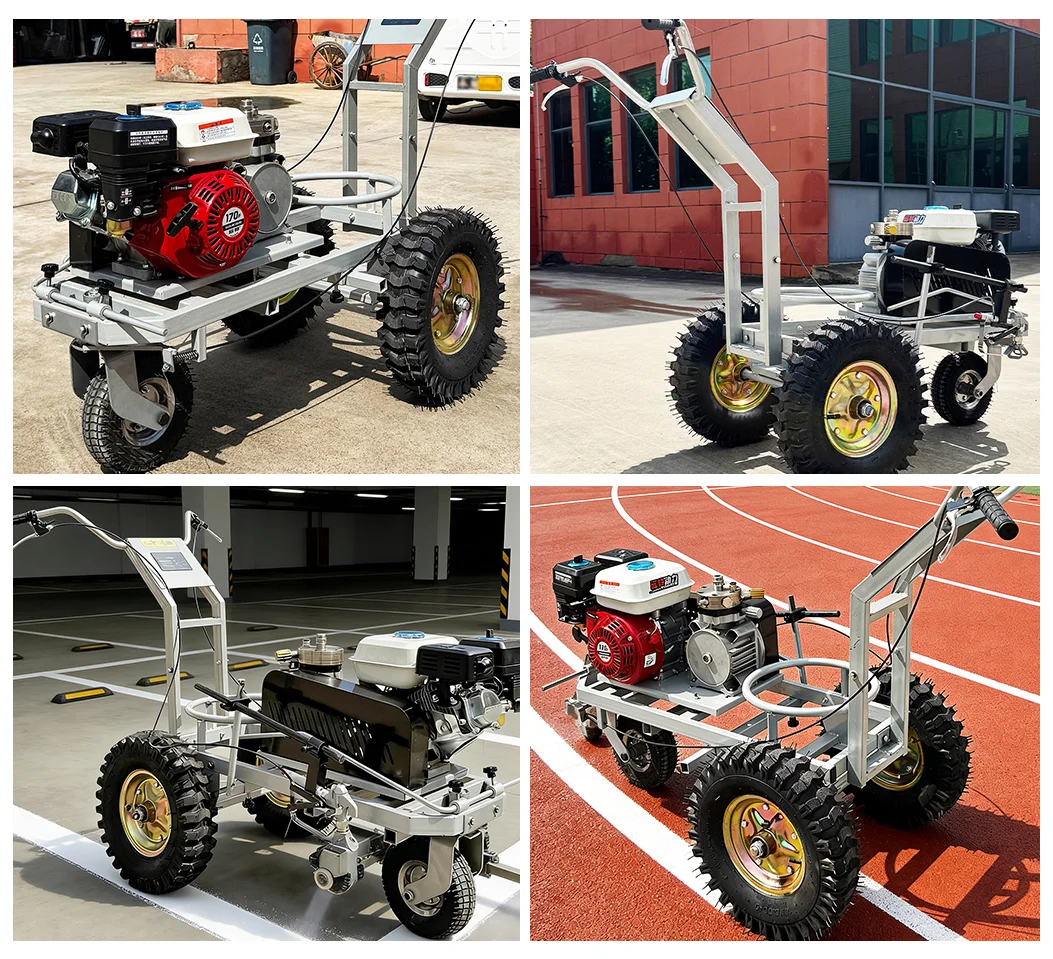

Application Cases
Highway Marking Project
In a highway renovation and expansion project, the GZD cold spray marking machine was used to mark center lines and edge lines. The dual-nozzle design ensured high efficiency, with over 4,000 meters marked per day. The markings were clear and bold, and the project passed final inspection.
Commercial Parking Lot Marking
In a parking lot marking project at a shopping center, a cold spray marking machine was used to mark parking spaces and lane lines. The equipment is flexible to operate, with adjustable spray width. The markings were neat and aesthetically pleasing, and the client was satisfied.
Airport Runway Markings
In an airport runway maintenance project, a cold spray marking machine was used to mark taxiways. The high-pressure spraying method ensures strong adhesion and excellent durability of the markings. The project met airport acceptance standards.
Customization
Customize your concrete joint cutting machine with GZD! Our road cutting machine, originating from China, offers versatility with blade diameters of 40cm and 50cm. Choose a blade size between 600mm to 700mm, powered by a reliable 13HP engine. Enjoy peace of mind with a 1-year warranty on your concrete floor cutting machine. Achieve cutting depths of up to 150mm!
Dealer Customization Policy
FAQ
Absolutely. We offer comprehensive OEM and ODM services for your branding needs, including custom logos, personalized paint colors, and specific packaging designs.
Just 1 unit to start. We encourage sample testing. For bulk orders or mixed-container shipments, we provide aggressive wholesale tier pricing.
We manage the heavy lifting. All equipment is secured in export-grade wooden crates. We offer Sea, Air, and Train freight options, handle all export documentation, and specialize in mixed-container consolidation to minimize your shipping costs.
Yes. Every machine ships with intuitive operation manuals and video tutorials. For major fleet purchases, we provide dedicated remote video training to ensure your team is ready to go.
Downtime kills profits. You have 24/7 access to our technical troubleshooting team. We also maintain a massive inventory of genuine spare parts ready for immediate air freight.
We balance rugged, commercial-grade quality with direct wholesale pricing. We aren’t selling cheap, disposable machines. You are investing in high-ROI equipment backed by a reliable supply chain and flexible payment terms.
