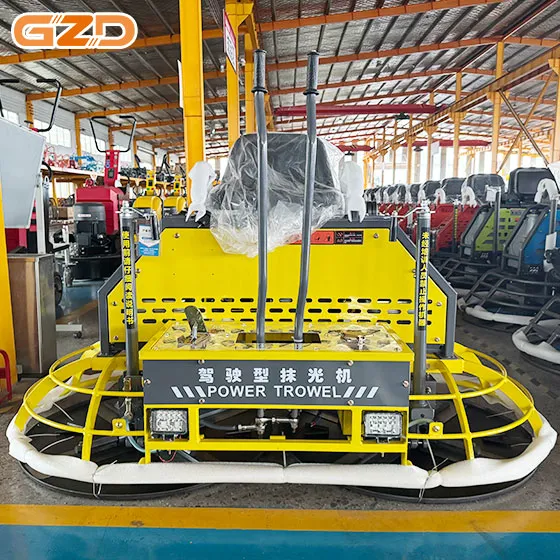

Concrete Ride-On Power Trowel

High-Efficiency Large-Area Finishing

The GZD-1000 model features a 1910mm operating diameter with dual 940mm discs, capable of processing over 5000㎡ per day. The GZD-800 model offers 1530mm operating diameter with 790mm discs. Both models achieve 3-5 times the efficiency of walk-behind trowels, making them ideal for large-scale industrial and commercial floor projects.

Powerful Engine Configuration

Available with Honda GX690 (24HP/17.6KW) or GX390 (13HP/7.6KW), as well as Loncin and Lifan engine options. The blade speed range of 70-150rpm allows operators to adjust for different concrete conditions—from rough floating to final finishing. The dual-disc independent drive system enables precise angle and speed adjustment for each disc.

Ergonomic Operator Platform

The seated design significantly reduces operator fatigue compared to walk-behind models, enabling longer productive work sessions. The intelligent speed control system automatically adjusts troweling pressure and speed based on floor conditions, ensuring consistent quality. The ergonomic platform design improves operator comfort and productivity by over 60%.

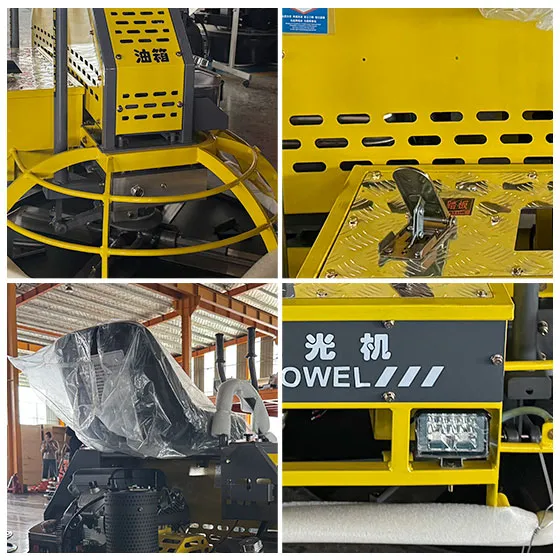

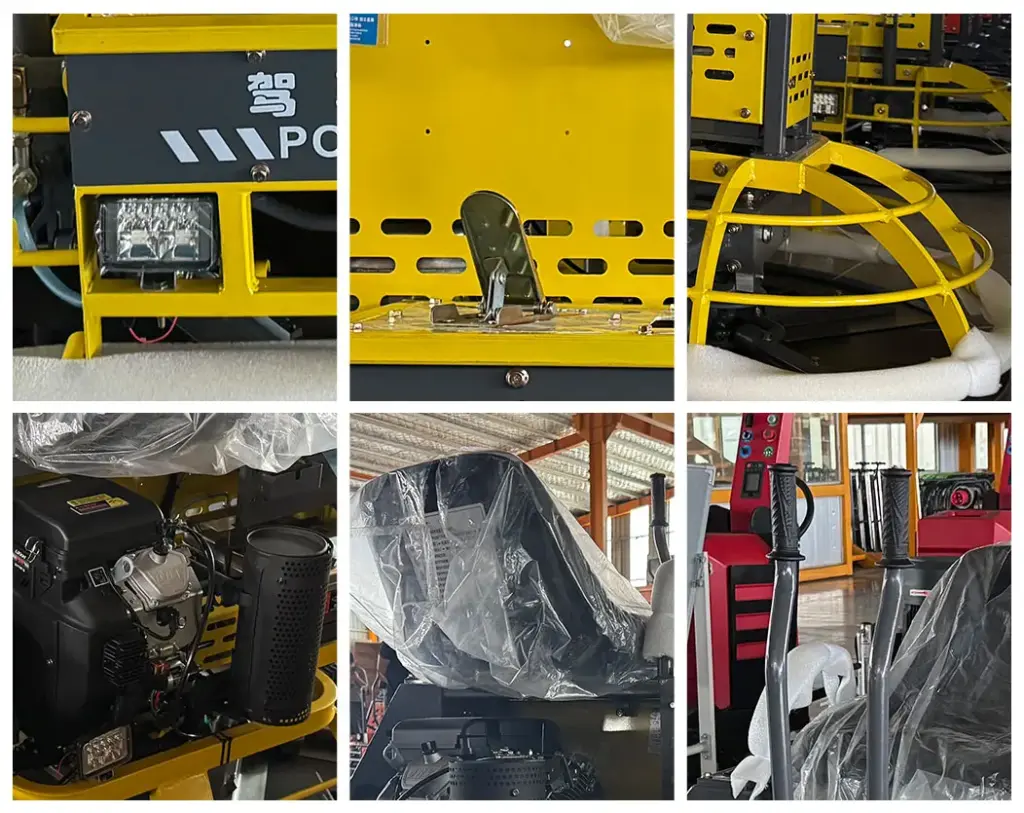

Professional-Grade Construction

Built with high-strength alloy steel trowel discs featuring special heat treatment for 3x wear resistance compared to standard steel. The reinforced frame structure supports over 500kg load capacity. Dual-disc synchronous drive technology ensures consistent blade speed across both discs, eliminating uneven surface issues caused by speed variations.

Case Study 1: Floor Construction Project at a Large Logistics and Warehousing Center

In an e-commerce logistics park construction project, the GZD-1000 ride-on power trowel was used to finish 50,000 square meters of warehouse flooring. The equipment has a daily processing capacity exceeding 5,000 square meters, and its dual-disc synchronous drive ensures consistent surface flatness. After construction, the floor flatness deviation was controlled within ±2 mm, meeting the operational requirements for automated warehouse equipment, and the project duration was shortened by 40% compared to traditional methods.

Case 2: Floor Finishing in an Automotive Manufacturing Workshop

In a new workshop construction project at an automotive manufacturing plant, a ride-on trowel was used for the finishing of a large-area concrete floor. The machine’s powerful 24 HP engine ensured efficient operation on thick concrete slabs, while the operator’s ride-on design reduced fatigue and extended continuous operation time. The project successfully completed the finishing of 30,000 square meters of flooring, with surface density meeting design standards.

Case Study 3: Airport Apron Maintenance Project

In an airport apron maintenance project, a ride-on concrete finisher was used for localized floor repairs. The machine’s large working diameter ensured seamless integration of the repaired area with the original surface, while the intelligent speed control system automatically adjusted parameters based on the concrete’s curing stage. The repaired surface met aircraft load requirements, and the project was completed ahead of schedule.

Customize your concrete joint cutting machine with GZD! Our road cutting machine, originating from China, offers versatility with blade diameters of 40cm and 50cm. Choose a blade size between 600mm to 700mm, powered by a reliable 13HP engine. Enjoy peace of mind with a 1-year warranty on your concrete floor cutting machine. Achieve cutting depths of up to 150mm!
