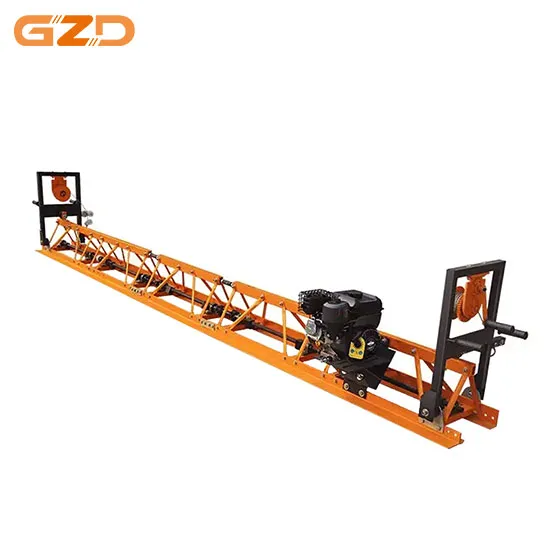

Concrete Truss Screed

Precision Leveling Across Wide Spans

The rigid truss frame maintains consistent elevation across working widths from 4 to 18 meters. Unlike flexible screeds that bow under their own weight, the GZD Truss Screed delivers laser-flat results with minimal operator intervention. The all-steel structure is earthquake-resistant and won’t deform under heavy use. Achieve floor flatness tolerances of ±3mm over 10-meter spans, meeting high-precision construction requirements.

Vibratory Compaction & Leveling

The integrated vibration system operates at high frequency (up to 70Hz), simultaneously compacting and leveling fresh concrete in a single pass. With 25cm effective compaction depth and 26cm construction depth, the machine eliminates voids and air pockets while creating a smooth, dense surface. The cold-rolled steel base plate is wear-resistant and corrosion-resistant. Reduces the need for additional vibration equipment and manual finishing work.

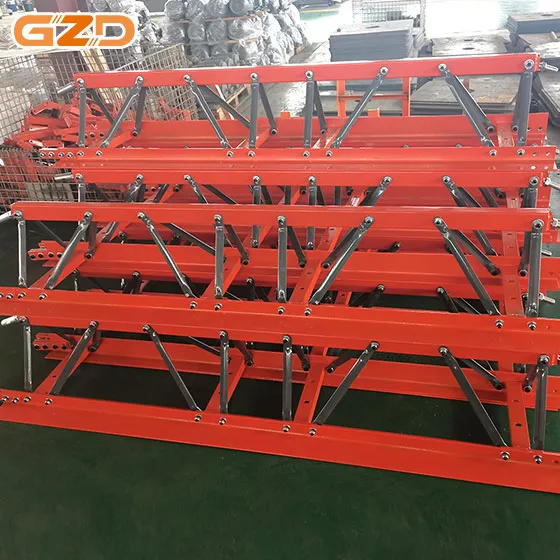

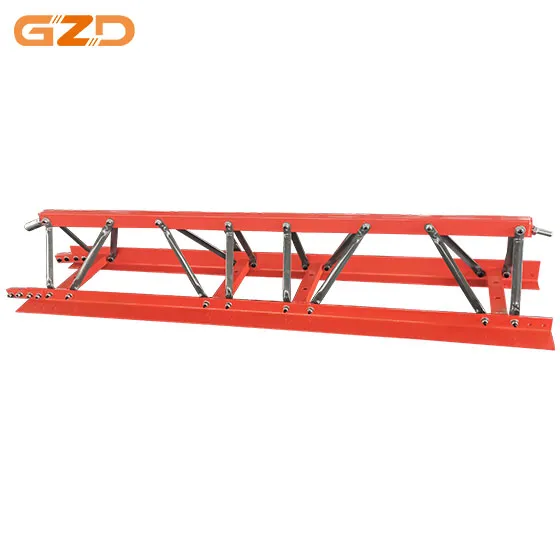

Customizable Length Configuration

Available in lengths from 4 to 18 meters, the GZD Truss Screed adapts to project requirements. Modular sections allow for easy transportation and on-site assembly—the detachable design significantly reduces maintenance and shipping costs. Quick-connect meter sections reduce equipment purchase costs. The 45kg/m weight specification ensures sufficient downward pressure without excessive handling difficulty.

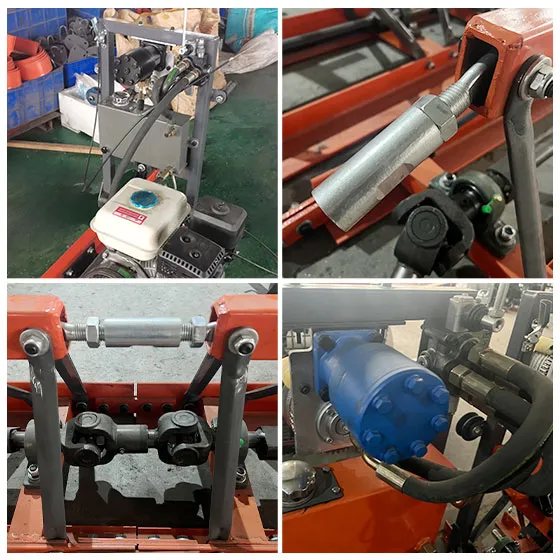

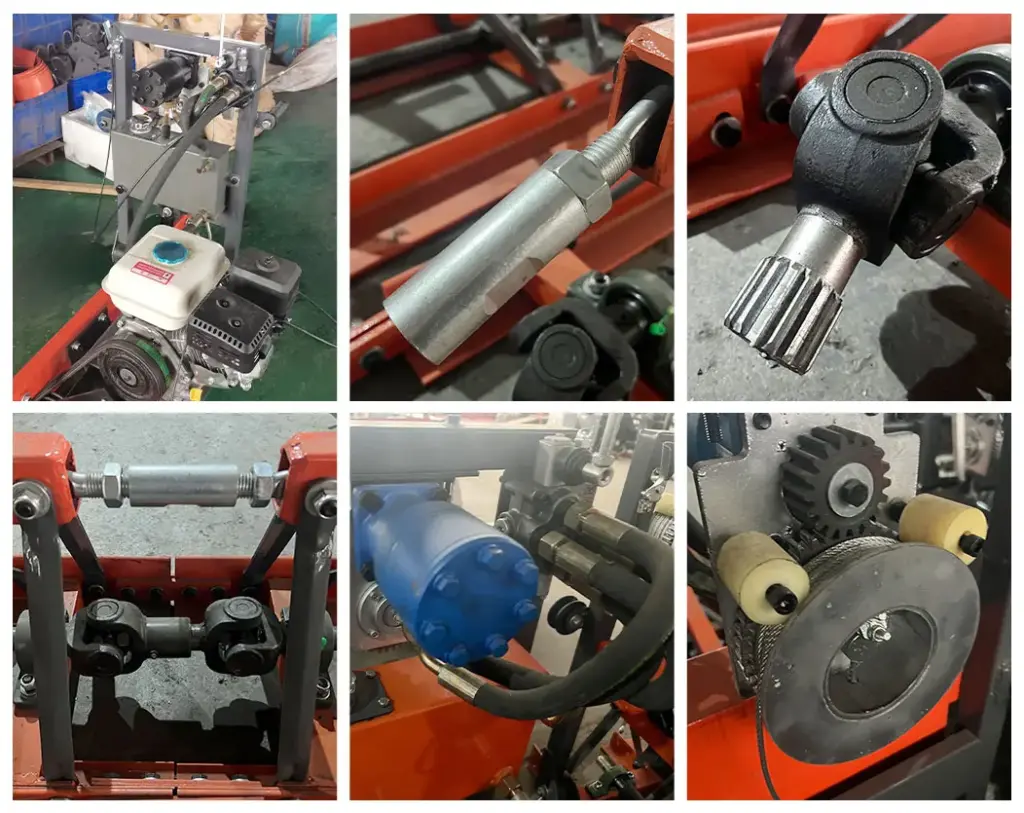

Self-Propelled Operation

The 5.5HP Honda-powered engine (or premium electric motor option) drives the screed forward at a consistent 6m/min pace, eliminating the need for manual pulling or pushing. Operators simply guide the machine along the forms while the mechanical drive maintains steady progress. Reduces labor requirements and operator fatigue. Compatible with both gasoline and electric power sources for flexibility.

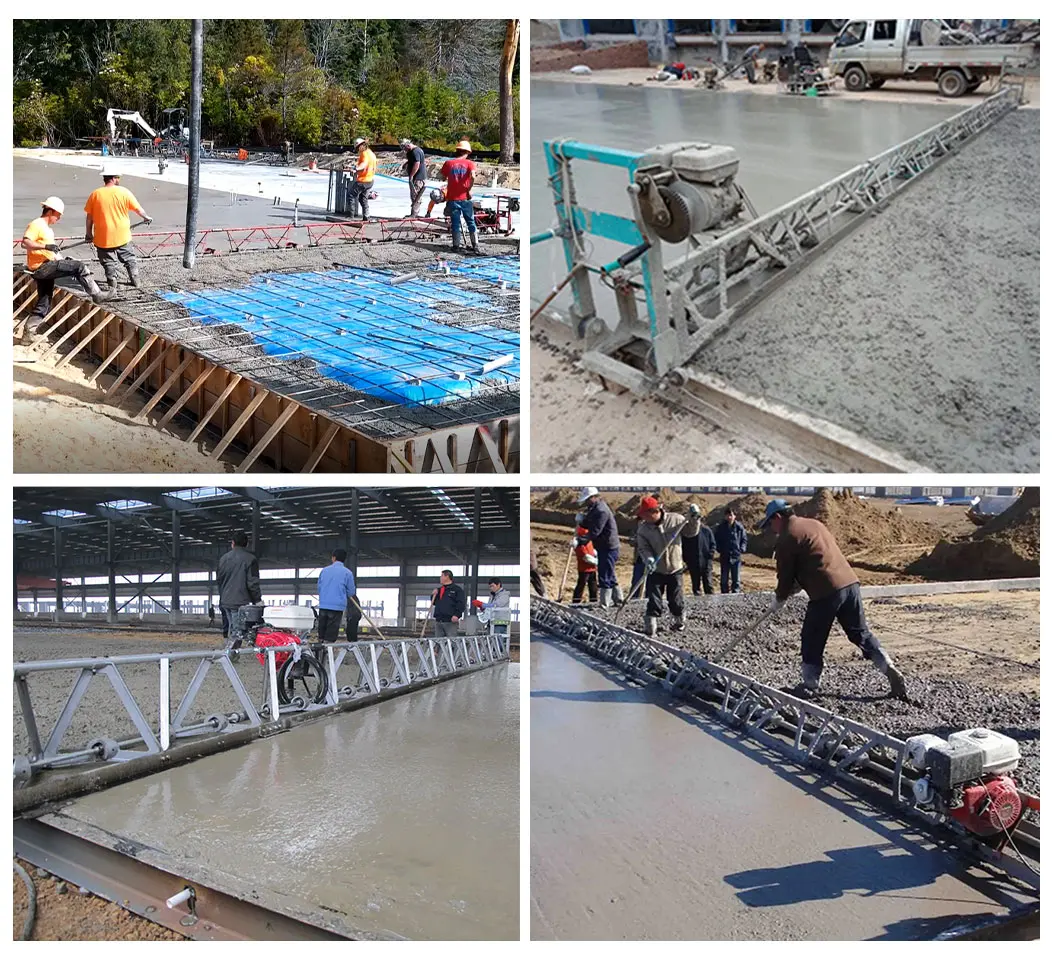

Floor Construction Project for a Large-Scale Logistics and Warehousing Center

In a logistics park construction project, a truss screed was used to level 30,000 square meters of warehouse flooring. The equipment had a working width of 12 meters and a vibration frequency of 70 Hz, achieving a daily construction area of 2,500 square meters. After construction, the floor flatness deviation was controlled within ±3 mm, meeting the high flatness requirements for frequent forklift operations, with a subsequent repair rate of less than 0.5%.

Case Study 2: Floor Construction in an Automobile Manufacturing Workshop

In a new workshop construction project at an automobile manufacturing plant, a GZD truss screed was used for large-area concrete floor leveling. The equipment’s modular design facilitated transportation into the workshop interior. Through an integrated “spreading + vibrating + screeding” process, 8,000 square meters of flooring were completed. Compared to traditional methods, the construction period was shortened by 40%, and the floor’s load-bearing capacity met the requirements for heavy machinery.

Highway Service Area Plaza

In a renovation project for a highway service area, a truss screed was used to treat the plaza floor. With a working width of 8 meters and an effective compaction depth of 25 cm, the surface reached the design elevation in a single pass. After construction, the floor exhibited uniform density with no honeycombing or bubbling defects, and the project successfully passed final inspection.
