Electric Tamper

High-Impact Compaction Power

Engineered with a robust 3KW electric motor, the GZD Electric Tamper delivers a consistent 15KN ramming force across all models. According to industry standard JB/T 13972-2020, this impact frequency of 640-680 times/min achieves compaction degrees above 95% for granular soils. The optimized crank-link mechanism ensures deep soil penetration and uniform density, reducing foundation settlement risk by up to 40% compared to manual methods.

Eco-Friendly & Low Maintenance

Zero exhaust emissions, minimal noise pollution (below 75dB), and no fuel costs. The electric drive system eliminates the need for oil changes, fuel filters, and carburetor cleaning. Maintenance costs are 60% lower than diesel-powered alternatives, making it ideal for indoor projects, residential areas, and environmentally sensitive zones. Complies with modern green construction requirements.

Ergonomic Single-Person Operation

Lightweight design (60-65kg) with an ergonomically designed handle reduces operator fatigue during extended use. The compact footprint allows easy maneuvering in confined spaces, narrow trenches, and corners where larger rollers cannot reach. One worker can complete jobs that previously required a two-person team. Jump height of 45-70mm provides optimal impact energy transfer.

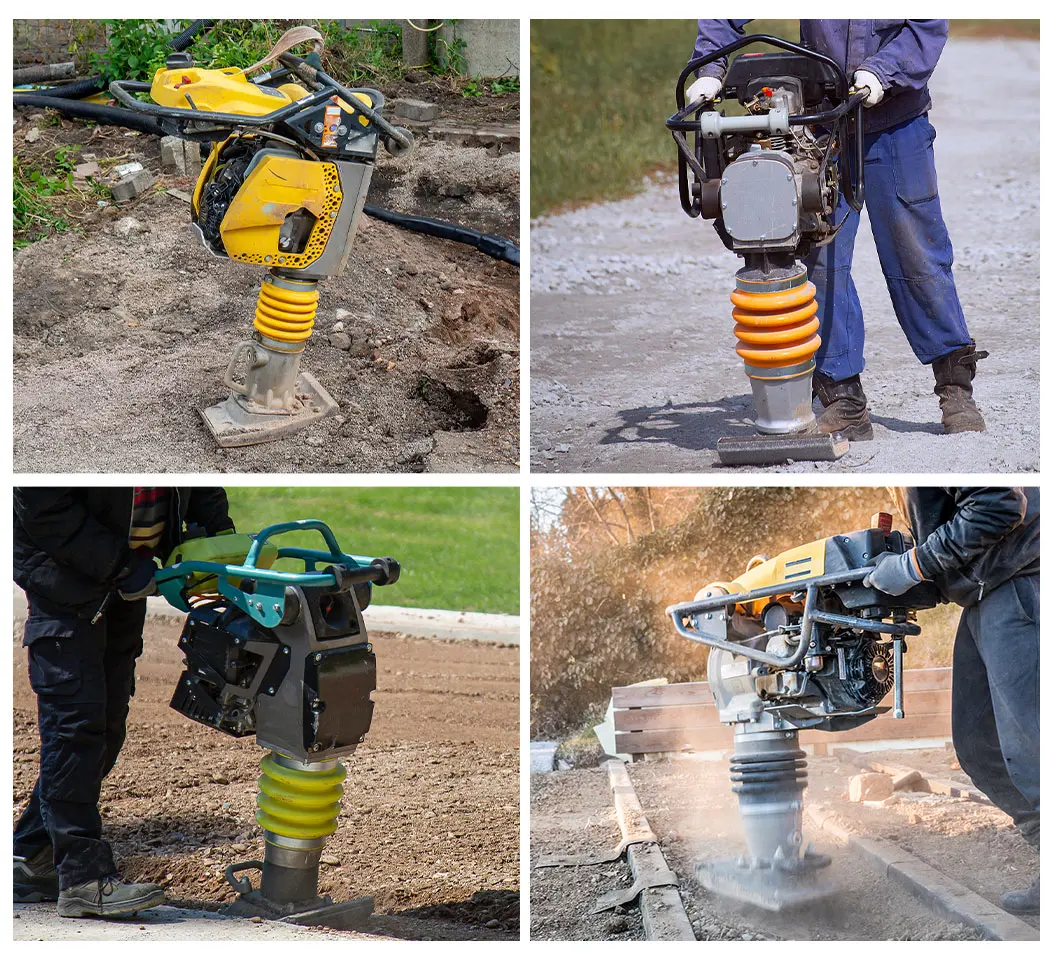

Versatile Application Range

From road rehabilitation and trench backfilling to foundation tamping and landscaping projects, the GZD Electric Tamper handles diverse soil types including sand, clay, and gravel. Three model options (GZD-125/110/100) provide flexibility for different project scales and soil conditions. Compatible with various compaction methods including layered compaction and repeated tamping techniques.

Case 1: Highway Subgrade Reinforcement Project

In a highway expansion project, the contractor used an electric impact compactor to treat the backfill areas at the transition sections of bridges and culverts. A layered compaction process was adopted, with each layer kept under 30 cm in thickness. After five passes of compaction, testing showed a compaction rate of over 96%, and post-construction settlement was controlled within 5 mm—well below the 15 mm standard required by specifications.

Case 2: Urban Road Repair Project

In a municipal road repair project, electric compactors were used for localized compaction of the base course following the repair of potholes in the asphalt pavement. Compared to traditional diesel compactors, the electric models reduced noise by 40% during construction in residential areas and produced zero exhaust emissions, earning praise from nearby residents. The project successfully passed final inspection.

Case Study 3: Building Foundation Treatment

For a commercial complex project where weak interlayers were present underground, electric compactors were used for replacement and reinforcement. Through the “layered backfilling + high-frequency compaction” process, the single-point bearing capacity met design requirements, the construction period was shortened by 15 days, and safety hazards associated with diesel equipment operating indoors were avoided.

Customize your concrete joint cutting machine with GZD! Our road cutting machine, originating from China, offers versatility with blade diameters of 40cm and 50cm. Choose a blade size between 600mm to 700mm, powered by a reliable 13HP engine. Enjoy peace of mind with a 1-year warranty on your concrete floor cutting machine. Achieve cutting depths of up to 150mm!
