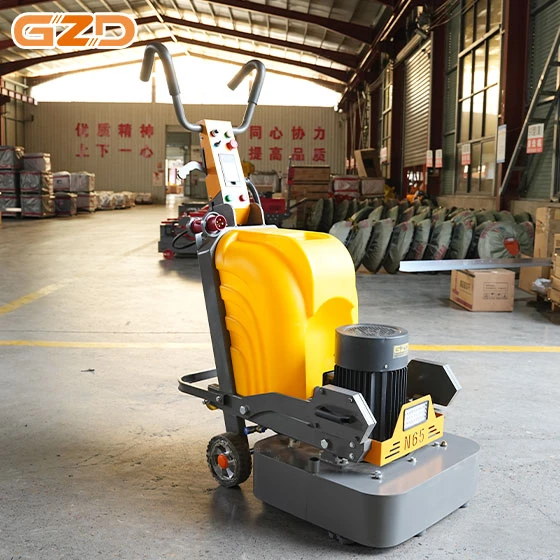

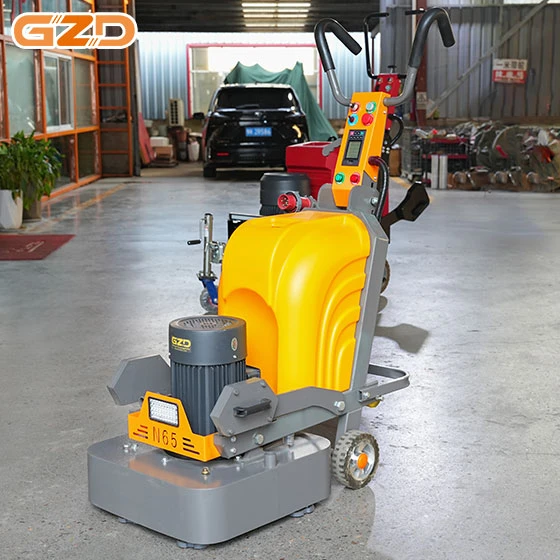

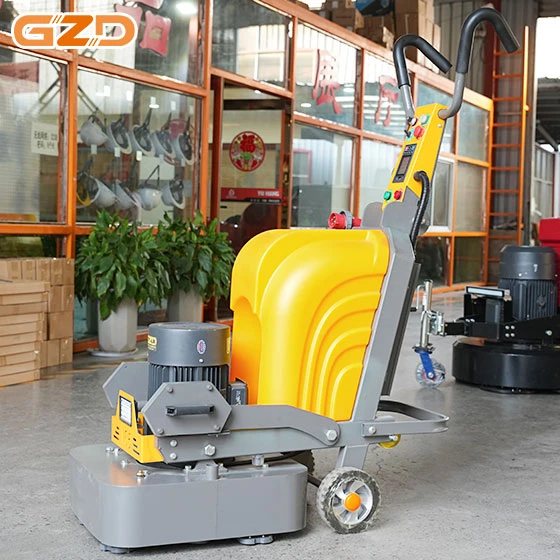

GZD-N65 Planetary Concrete Floor Grinder & Polisher

The GZD-N65 Planetary Concrete Floor Grinder & Polisher is a high-performance grinding machine independently developed by GZD Machinery for medium-to-large floor construction projects. It features a four-head planetary gear-driven system where the main plate and satellite heads rotate in opposite directions, creating a cross-cutting trajectory that significantly improves grinding efficiency while maintaining superior surface flatness. With a 650mm working width, this machine is equally capable of handling aggressive coarse grinding on large warehouse and factory floors as well as fine polishing in commercial spaces and residential underground garages.

As a professional-grade planetary concrete floor grinder, the GZD-N65 is powered by a 7.5kW motor paired with an 11kW variable frequency drive system. The main plate speed is steplessly adjustable from 0 to 300 rpm, while satellite heads reach up to 1800 rpm, allowing operators to precisely match working parameters to concrete hardness, coating thickness, and target gloss levels. The aluminum alloy integral-cast gearbox employs a double-layer gear structure, completely eliminating traditional belt-driven systems and boosting transmission efficiency to over 97% — fundamentally solving the chronic problems of belt slippage, breakage, and frequent replacement.

The machine supports both dry and wet grinding modes. In dry mode, the 2-inch or 3-inch dust port connects directly to an industrial vacuum cleaner for dust-free operation throughout the entire construction process. In wet mode, the 40L large-capacity water tank provides continuous water supply to effectively reduce grinding temperature, extend diamond tooling life, and suppress silica dust — fully complying with occupational safety standards worldwide (OSHA Silica Dust Regulation 50 μg/m³).

Core Technical Architecture

4-Head Planetary Gear-Driven System

The core of the GZD-N65 lies in its 4-head planetary gear-driven system. The main plate rotates clockwise while four satellite heads spin counterclockwise, creating a compound cutting trajectory similar to planetary motion around the sun. This design delivers three key advantages:

First, the cross-cutting trajectory provides denser coverage per pass, producing more uniform grinding patterns that eliminate the circular scratches and “crescent marks” commonly left by traditional single-disc rotary grinders. For users of concrete floor grinder polishers seeking high-gloss polishing results, this means fewer transitional abrasive steps and shorter overall project timelines.

Second, the four satellite heads distribute motor power evenly across 12 diamond contact points, with each head bearing only one-quarter the load of a single-disc machine. This distributed force not only reduces localized impact on the concrete surface but also significantly extends the effective service life of diamond tooling — field tests show that planetary heads reduce diamond consumption by approximately 30% compared to rotary single-disc grinders for the same floor area.

Third, direct gear drive replaces traditional belt drive. Inside the aluminum alloy integral-cast double-layer gearbox, plasma-nitrided gear surfaces achieve hardness of HRC 58–62, with torque density reaching 110–150 Nm/kg. This means that when encountering concrete high spots or stubborn coatings, the heads will not stall from sudden friction increases (a common failure of passive planetary systems) — instead, the active gear drive maintains constant rotational speed, ensuring consistent surface flatness across the entire working area.

Variable Frequency Drive & Soft Start System

The GZD-N65 features an 11kW variable frequency drive (VFD) system for its concrete polishing machine, with the main plate speed steplessly adjustable from 0 to 300 rpm and satellite head speed independently adjustable from 0 to 1800 rpm. This wide-range speed control enables a single machine to cover the full processing spectrum — from coarse grinding (30–80 grit metal-bond diamonds) to fine polishing (1500–3000 grit resin polishing pads).

The soft start function ensures smooth current ramp-up during machine startup, preventing power grid impact while protecting the gearbox and bearings from instantaneous torque damage. This feature is particularly important for construction sites in developing countries with relatively weak power infrastructure — the VFD maintains stable output even under voltage fluctuations of ±15%, preventing equipment shutdown from voltage drops.

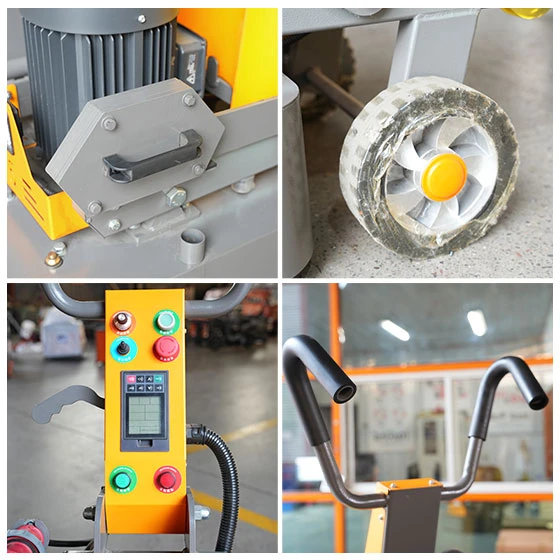

The motor direction reversal switch is prominently positioned on the control panel, allowing operators to change grinding head rotation direction with a simple toggle — no shutdown or disassembly required. This is extremely practical when treating scratches from different directions or grinding along edge areas.

Dust-Free Operation & Wet Grinding System

In modern floor construction, dust control is no longer optional — it is a regulatory mandate. The GZD-N65’s floor renovation equipment design addresses silica dust at the source.

In dry grinding mode, the machine’s floating dust shroud at the base maintains close contact with the floor surface, creating a negative-pressure sealed chamber. The 2-inch or 3-inch (optional) dust port connects directly to GZD’s matched industrial vacuum cleaner with filtration accuracy of 0.3 microns (HEPA H13 grade) and dust capture efficiency of 99.97%. The floating shroud design ensures sealing effectiveness even on uneven floors, preventing dust leakage through local gaps.

In wet grinding mode, the 40L stainless steel water tank delivers continuous water supply to the grinding area through a dual gravity and micro-pump system. The key advantages of wet grinding include: ① reducing grinding temperature to prevent diamond tooling from “glazing” due to overheating; ② settling silica dust directly into slurry at the source, eliminating dust dispersion; ③ enhancing polishing gloss on stone-based floors such as terrazzo. The 40L tank capacity supports 3–4 hours of continuous wet grinding without refilling.

Quick-Change Magnetic Tooling System

The satellite head base plates of the GZD-N65 feature a magnetic quick-change design, allowing operators to replace individual diamond grinding discs in under 3 seconds without any wrenches or screwdrivers. This design reduces the disc change time of traditional bolt-fixed systems (averaging 3–5 minutes per disc) by over 90%, saving cumulative hours of tooling changeover time during large-scale multi-step projects.

The machine is compatible with the full range of GZD diamond tooling systems, including:

• Metal-bond diamond discs (30–80 grit): For coarse grinding, old epoxy coating removal, and concrete surface leveling
• Transitional hybrid discs (100–200 grit): For eliminating deep scratches left by metal-bond diamonds, preparing for polishing
• Resin polishing pads (400–3000 grit): For fine polishing and mirror-finish processing
• PCD tools: For removing stubborn adhesives, asphalt, paint, and other thick-film coatings
• Tungsten carbide scrapers: For aggressive stripping of extreme-thickness coatings

All abrasives are available in multiple hardness grades (soft/medium/hard) to match different concrete substrate strengths. GZD also offers customized diamond tooling formulations based on customers’ specific floor materials.

Case 1: Lagos Logistics Hub Floor Polishing, Nigeria

Project Background: In 2025, a new 18,000 m² regional logistics distribution center was constructed in Lagos, Nigeria. The investor required polished concrete flooring to replace the traditional epoxy coating scheme, aiming to reduce long-term maintenance costs and improve forklift traffic wear resistance.

Equipment Configuration: 2 × GZD-N65 planetary concrete floor grinders + 2 × GZD-IV2000 industrial vacuum cleaners + full diamond tooling kit

Construction Process:

• Days 1–3: Coarse grinding and leveling with 50-grit metal-bond diamond discs, removing concrete surface laitance and curing agent, processing 3,000 m²/day
• Days 4–5: Medium grinding with 120-grit and 220-grit transitional discs, eliminating coarse scratches
• Day 6: Lithium-based concrete densifier application, 24-hour penetration time
• Days 7–8: Fine polishing with 800-grit and 1500-grit resin polishing pads, achieving mirror gloss (60° gloss meter reading ≥ 60)
• Day 9: Sealer application and final polishing

Project Results: Completed all 18,000 m² polishing in 9 working days, achieving floor flatness of FF38/FL28 and gloss levels meeting investor acceptance standards. Compared to the original epoxy coating scheme, the polished concrete floor reduced material costs by 45% and is projected to last 15+ years (epoxy coatings typically require renovation every 5–8 years).

Case 2: Dubai Shopping Mall Terrazzo Restoration, UAE

Project Background: A major shopping mall in Dubai underwent renovation and upgrading in 2024. The original terrazzo floor had been in service for 12 years, with severe surface wear, dull aggregates, and localized cracking. The owner required phased construction without closing the mall, and the restored terrazzo had to match the decorative quality of newly installed terrazzo.

Equipment Configuration: 1 × GZD-N65 planetary floor grinder (wet mode) + 1 × GZD-IV3000 industrial vacuum cleaner + custom terrazzo-specific diamond tooling

Construction Process:

• Crack repair: Epoxy resin injection + grinding and leveling
• Coarse grinding: 60-grit metal-bond diamond, wet mode with 40L water tank continuous supply, exposing fresh aggregates
• Progressive grinding: 120 → 220 → 400 grit, each grade eliminating previous scratches
• Polishing: 800 → 1500 → 3000 grit resin pads, wet-assisted gloss enhancement
• Crystallization: Oxalic acid crystallizer + white polishing pad high-speed polishing

Project Results: Phased construction across 6 zones, completing 6,500 m² of terrazzo restoration in 21 days. Restored floor gloss reached 65° (60° gloss meter), with aggregate color restoration exceeding 95% — passed owner inspection on the first attempt. Total project value: 78,000 (approximately 12/m²), material costs approximately $1.8/m², gross margin 68%. The mall management expressed high satisfaction with dust and noise control during construction — the GZD-N65’s dust-free dry grinding system was used during non-business hours, while the wet grinding system was used during business hours, perfectly accommodating the mall’s operational schedule.

Case Study 3: Jakarta Underground Garage Floor Renovation, Indonesia

Project Background: An upscale residential complex in Jakarta had epoxy flooring in its underground garage that began peeling and delaminating extensively after 6 years of service. The property management decided to completely remove the epoxy and switch to polished concrete to reduce future maintenance frequency and costs. Total garage area: 12,000 m², ceiling height 2.6m, with limited ventilation.

Equipment Configuration: 2 × GZD-N65 concrete floor grinder polishers + 2 × GZD-IV2000 industrial vacuum cleaners (HEPA H13 filtration) + PCD tools and metal-bond diamond discs

Construction Process:

• Days 1–4: PCD tool rough stripping of old epoxy coating (average 1.5mm thickness), dry mode with industrial vacuum ensuring dust-free construction in the limited-ventilation underground garage
• Days 5–6: 30-grit metal-bond diamond disc fine grinding, removing residual coating and leveling concrete substrate
• Days 7–8: 120 → 220 grit transitional grinding
• Day 9: Sodium-based concrete densifier application
• Days 10–11: 800 → 1500 grit resin pad polishing
• Day 12: Anti-slip sealer application (garage floors must meet wet-condition anti-slip requirements)

Project Results: Completed 12,000 m² floor renovation in 12 days, averaging 1,000 m²/day. The owner particularly appreciated that in the limited-ventilation underground garage, the GZD-N65 with HEPA-grade vacuum dust-free construction system fully complied with Indonesian occupational safety standards (referencing OSHA 50 μg/m³ silica dust limit), without requiring closure of other garage areas during construction. Total project value: 60,000 (5/m²), equipment + material costs approximately $1.5/m², gross margin 70%. The property management subsequently placed additional renovation orders for 3 other residential complexes owned by the same developer.
