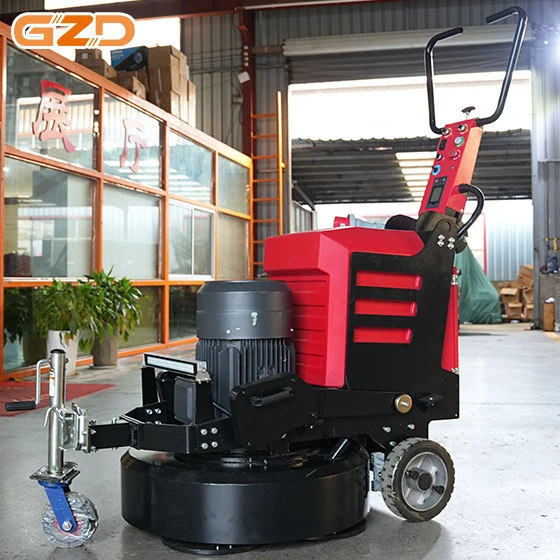

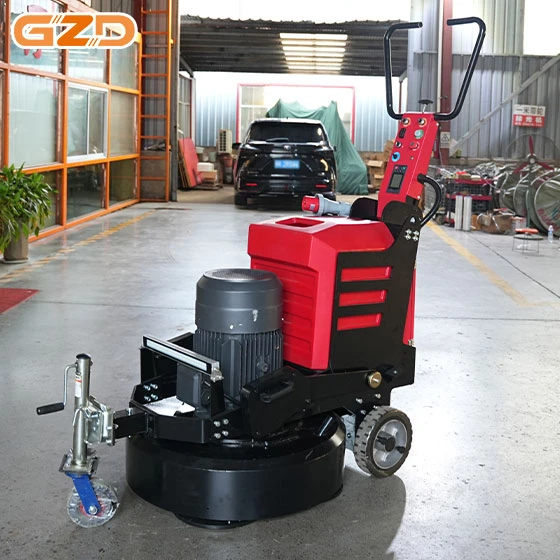

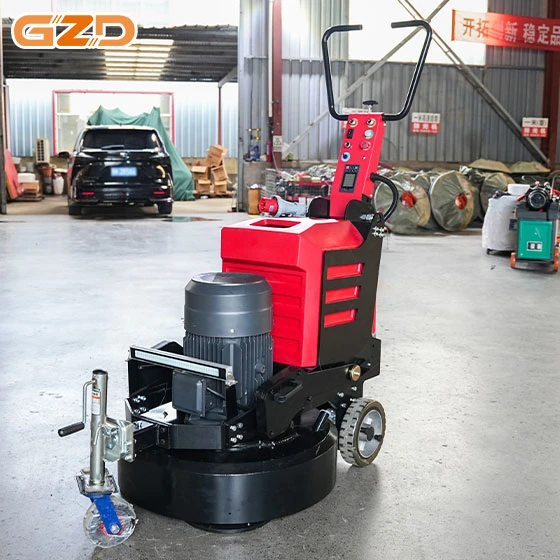

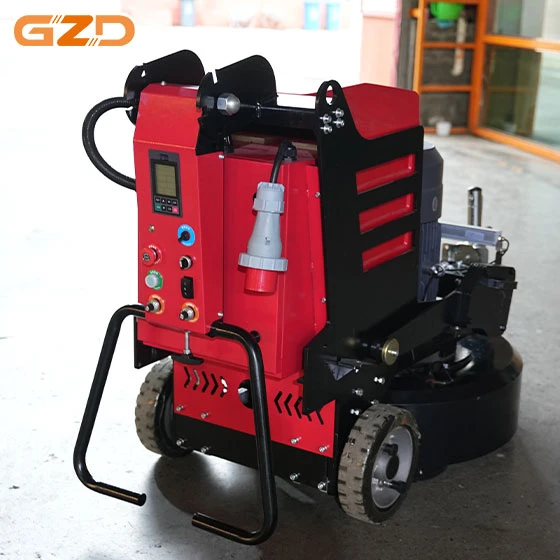

GZD Round Plate Planetary Concrete Floor Grinder & Polisher with Edge Grinding Wheel

The GZD Round Plate Planetary Concrete Floor Grinder & Polisher with Edge Grinding Wheel is an upgraded model developed by GZD Machinery on the N65 planetary platform, featuring an integrated edge grinding solution. The key innovation: the main grinding area employs a 3-head, 9-disc round plate planetary drive system, while an independently driven edge grinding wheel is integrated on the side of the machine body — enabling simultaneous main-area grinding and edge grinding within 3mm of the wall, completely eliminating the secondary manual edge work required by traditional floor grinders.

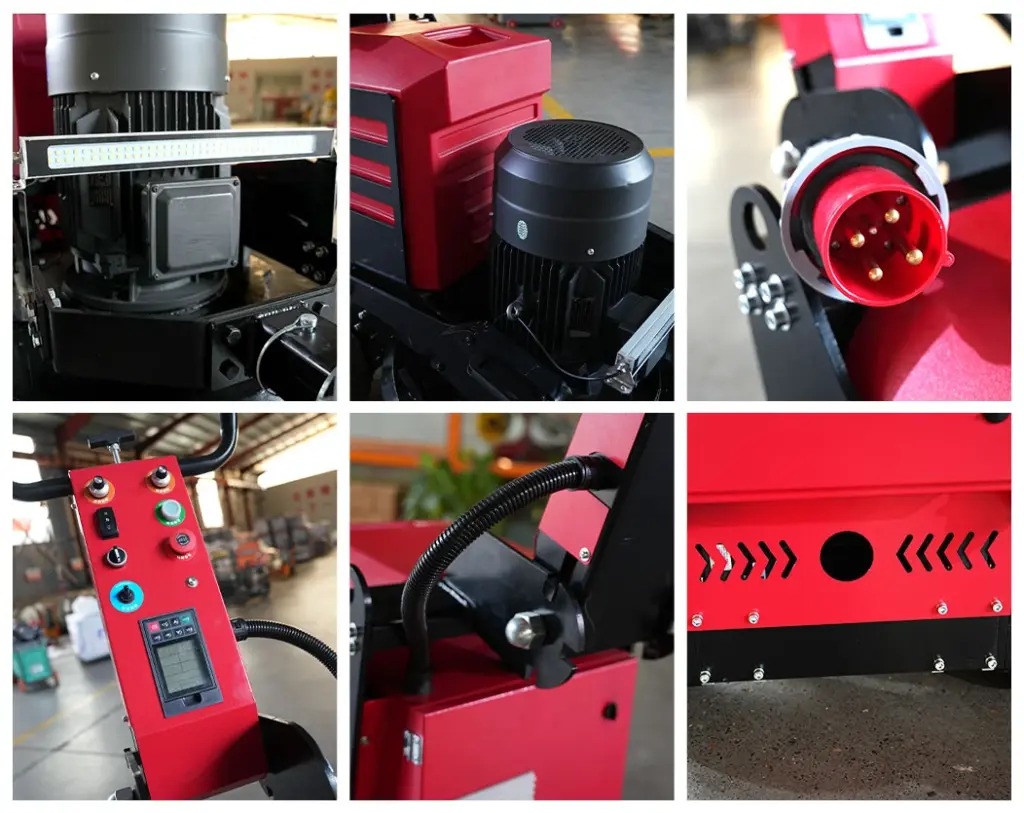

The 550mm round plate working width combined with 360° planetary rotation enables seamless, cross-seam-free complete coverage in a single pass. The 7.5kW motor paired with a 7.5kW variable frequency drive provides stepless main plate speed adjustment from 0 to 320 rpm and satellite disc speeds up to 1500 rpm, covering the full processing spectrum from coarse grinding to fine polishing. The aluminum alloy integral-cast gearbox features all-gear direct drive — no belts, no slippage, no frequent consumable replacement — with transmission efficiency exceeding 97%.

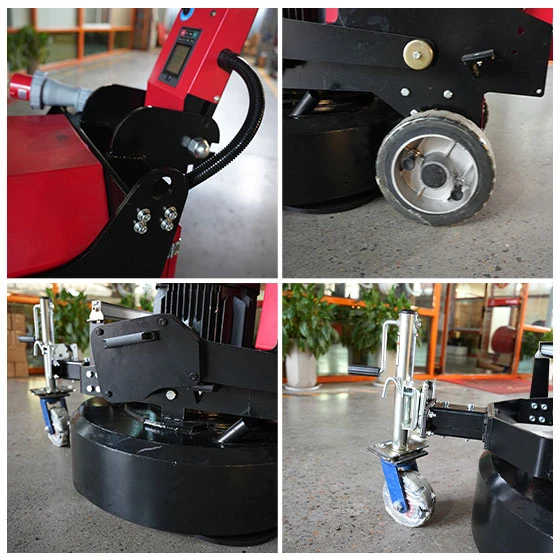

The edge grinding wheel is driven by an independent motor with adjustable height and swing angle, adapting to complex boundary conditions including wall corners, column bases, and stair treads. In dry mode, the dust port connects to an industrial HEPA vacuum for dust-free operation; in wet mode, the 30L stainless steel water tank provides continuous supply to reduce grinding temperature and enhance polishing gloss.

Case 1: Manila Warehouse Floor Polishing, Philippines

Project Background: In 2025, a new 12,000 m² e-commerce distribution warehouse was built in Manila, Philippines, requiring polished concrete flooring. The warehouse contained multiple rows of shelving and columns, with edge areas accounting for 15% of total floor area.

Equipment Configuration: 2 × GZD round plate planetary floor grinders with edge grinding wheel + 2 × industrial vacuum cleaners + full diamond tooling kit

Construction Process:

• Days 1–3: Coarse grinding and leveling (50-grit metal-bond diamond), main and edge grinding simultaneous, 2 machines processing 4,000 m²/day, shelf column base edges completed simultaneously
• Days 4–5: Medium grinding transition (120 + 220 grit), eliminating coarse scratches
• Day 6: Lithium-based densifier application
• Days 7–8: Fine polishing (800 + 1500 grit resin pads), edge wheel simultaneously polishing wall perimeter

Project Results: Completed 12,000 m² full polishing in 8 days (including 1,800 m² edge area) with zero additional manual edge work. The project team reported that the edge wheel’s efficiency improvement was most pronounced in dense shelving areas — traditional methods required workers to kneel with hand grinders under shelves, which was time-consuming and dusty. The GZD edge wheel could be pushed directly under shelving up to 60cm depth for grinding. Total project value: $72,000 — full equipment investment recovered on the first project.

Case 2: Istanbul Mall Interior Renovation, Turkey

Project Background: A commercial complex in Istanbul underwent interior floor renovation in 2025. The original terrazzo floor totaled 5,500 m², including numerous curved entry halls, cylindrical columns, and irregular display area boundaries. The owner required zero seam marks and zero edge color discrepancies after renovation.

Equipment Configuration: 1 × GZD round plate planetary grinder with edge wheel (wet mode) + 1 × industrial vacuum cleaner + custom terrazzo diamond tooling

Construction Process:

• Coarse grinding: 60-grit metal-bond diamond, wet mode, edge wheel at ±15° swing following curved walls and column bases
• Progressive grinding: 120 → 220 → 400 grit, edge wheel synchronized at each grade
• Polishing: 800 → 1500 → 3000 grit resin pads
• Crystallization treatment + final polishing

Project Results: Completed 5,500 m² terrazzo renovation in 15 days. Edge areas at curved walls and column bases achieved gloss consistency with the central area (60° gloss meter reading: 62°). Owner inspection passed on the first attempt, with particular praise for the seamless transition at curved boundaries. Total project value: 55,000 (10/m²), gross margin 65%. The owner subsequently placed additional renovation orders for 2 more floors in the same building complex.

Case Study 3: Nairobi Residential Complex Garage Renovation, Kenya

Project Background: An upscale residential complex in Nairobi had epoxy garage flooring that began delaminating after 5 years. The property management decided to switch to polished concrete. Total garage area: 6,000 m², ceiling height 2.5m, with limited ventilation and numerous pipes and fire boxes along walls.

Equipment Configuration: 1 × GZD round plate planetary grinder with edge wheel + 1 × HEPA H13 industrial vacuum + PCD tools and metal-bond diamond discs

Construction Process:

• Days 1–3: PCD tools + 30-grit metal-bond diamond coarse grinding, removing old epoxy coating, edge wheel simultaneously treating wall areas beneath pipes
• Days 4–5: 120 → 220 grit transitional grinding
• Day 6: Sodium-based densifier application
• Days 7–8: 800 → 1500 grit resin pad polishing + anti-slip sealer

Project Results: Completed 6,000 m² garage renovation in 8 days. The edge wheel performed exceptionally well in pipe-dense areas — traditional hand grinders could not effectively reach dead zones beneath pipes, while the GZD edge wheel could extend beneath pipes at 15cm height via height adjustment. The HEPA-grade dust-free system fully complied with Kenyan occupational safety standards under limited ventilation. Total project value: 30,000 (5/m²), gross margin 68%. The property management placed additional renovation orders for 2 more garages in the same complex.
