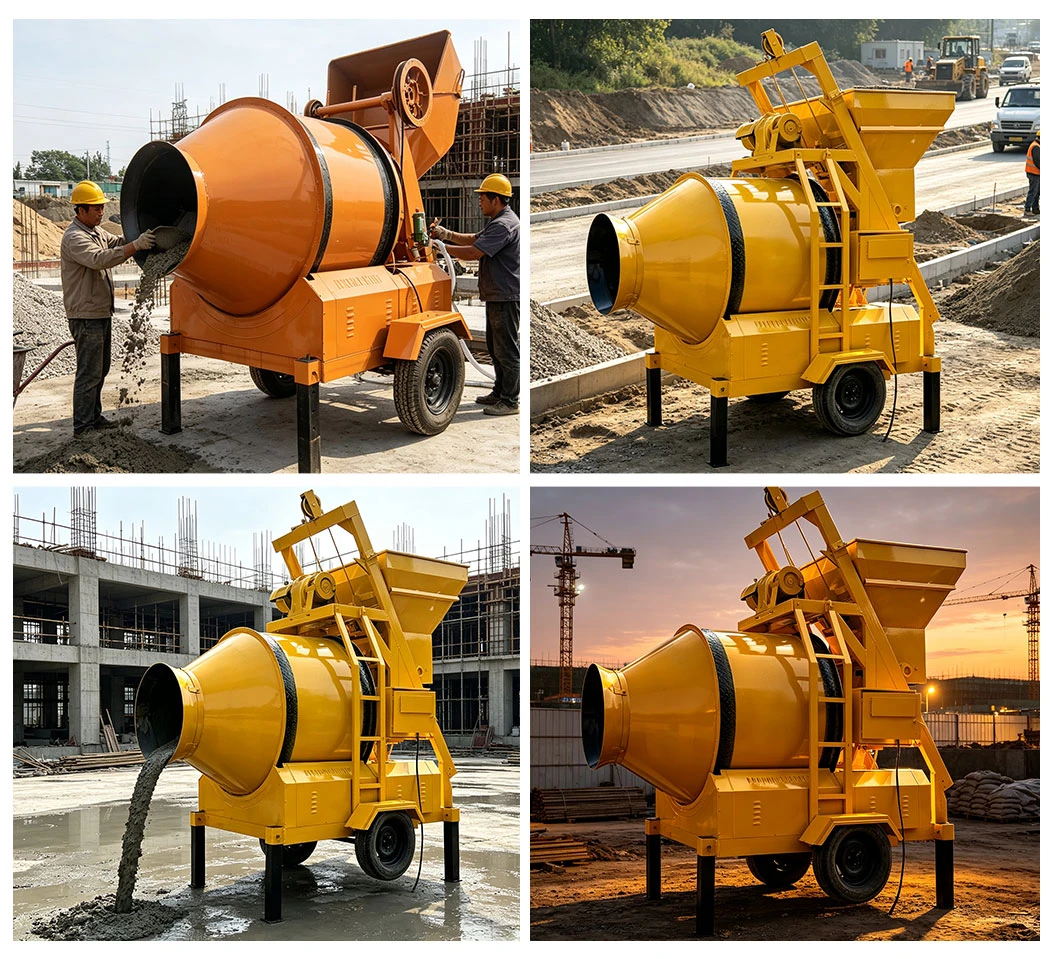

The GZD mobile drum concrete mixer with hydraulic hopper lift is a self-falling, double-cone, reverse-discharge portable concrete mixer engineered for small to medium construction sites that demand mobility, simplicity, and reliable batch quality without the infrastructure overhead of a stationary batching plant. Available in three discharge capacities — 350L, 500L, and 750L — and in both electric-motor (JZC) and diesel-engine (JZR) configurations, this mobile drum concrete mixer bridges the gap between hand-fed mini mixers and full-scale concrete plants, making it the go-to concrete mixing solution for rural road projects, residential developments, bridge approaches, and precast yards across emerging markets.

1 Self-Falling Double-Cone Drum with Gear-Ring Drive

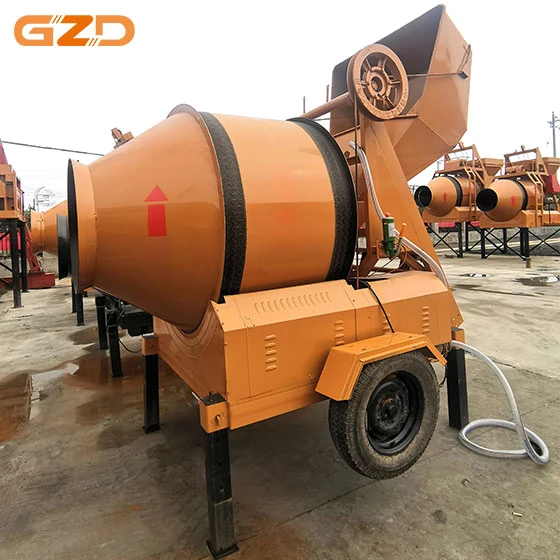

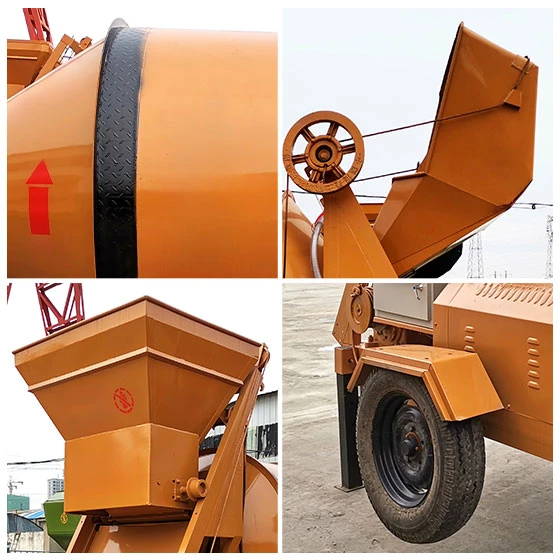

At the heart of the GZD mobile drum concrete mixer is a precision-welded double-cone mixing drum driven by a heavy-duty gear ring. The drum rotates clockwise for mixing and counter-clockwise for discharging — a reverse-discharge mechanism that eliminates the need for a separate tilting cylinder, reducing both maintenance points and failure modes. Internal mixing blades are fabricated from high-chromium manganese alloy steel (HRC ≥ 50), and the blade-to-drum clearance is controlled to ≤ 3 mm to prevent mortar seepage and ensure thorough homogenization of plastic, semi-dry, and low-slump concrete mixes. The gear-ring transmission delivers balanced drum rotation at 13–14 rpm with low noise emission (≤ 75 dB at 1 m), ensuring both mixing quality and operator comfort on extended shifts. This portable drum concrete mixer accommodates aggregate sizes up to 60–80 mm, making it suitable for a wide range of concrete mix designs without requiring pre-screening of coarse aggregates.

2 Hydraulic Hopper Lift System

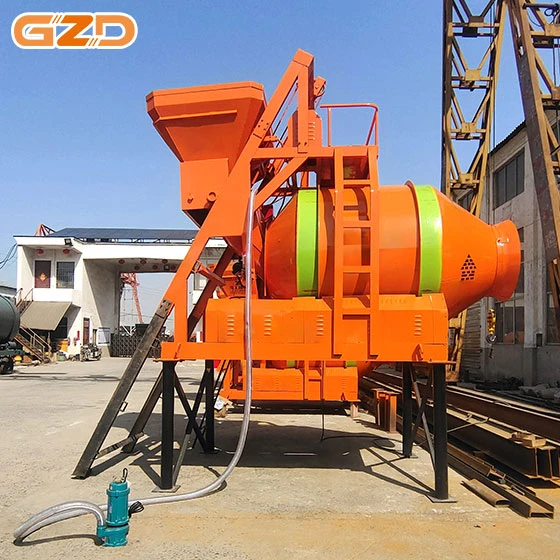

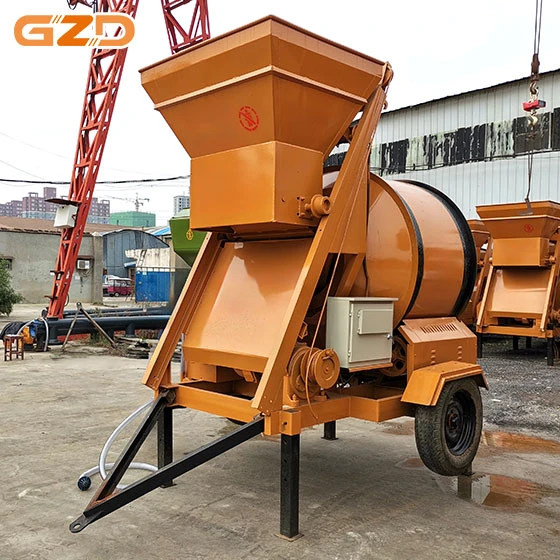

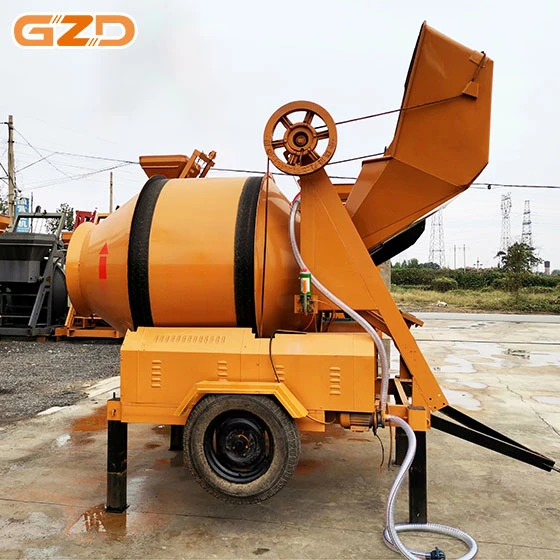

The defining feature of this model is the hydraulic tipping hopper — a purpose-built loading system that replaces manual shovel feeding with a single-lever hydraulic operation. Powered by a CBN-E316 gear pump (system pressure 20 MPa, working pressure 80 MPa on the diversion valve) and a dedicated hydraulic cylinder (piston diameter 90 mm, stroke 720 mm, model L530-80/50), the hopper lifts a full 560–1200 L charge of aggregates, cement, and sand from ground level to the drum feed opening in approximately 8–12 seconds. A three-stone manual valve gives the operator precise control over hopper ascent speed, while the hydraulic system’s inherent smoothness eliminates the jerky, load-shock failures common to wire-rope hoist mechanisms. For markets where wire-rope hoisting is preferred (lower cost, simpler field repair), the GZD mobile drum concrete mixer can be optionally configured with a cable-and-drum lifting system — offering buyers a choice between hydraulic reliability and mechanical simplicity based on local maintenance capabilities.

3 Dual Power Options: Electric (JZC) and Diesel (JZR)

Every GZD mobile drum concrete mixer with hydraulic hopper lift is available in two powertrain variants to match site conditions:

• JZC Series (Electric Motor): Equipped with a 3-phase AC motor (7.5–15 kW depending on model), ideal for sites with grid power access. Lower operating cost, quieter operation, zero exhaust emissions — preferred for urban residential construction and enclosed precast factories.
• JZR Series (Diesel Engine): Powered by Changfa or Yanmar air-cooled diesel engines (15–22 HP / 11–16.2 kW), enabling fully off-grid operation. The JZR diesel concrete mixer is the default choice for rural road construction, remote bridge projects, and developing markets where electricity supply is intermittent or unavailable.

Both powertrains drive the same drum, hopper, and water systems, so contractors can standardize operator training and spare parts inventories across mixed electric/diesel fleets.

4 Towable Chassis, Water System, and Mobility Package

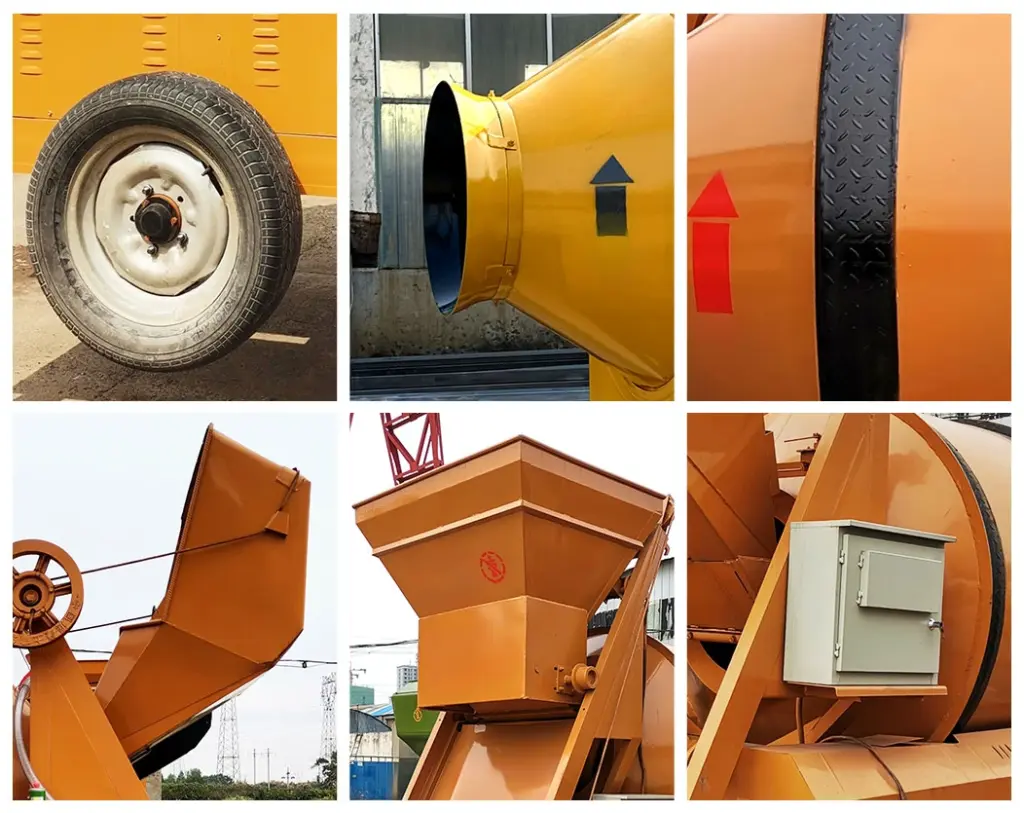

The mobile drum concrete mixer is mounted on a heavy-duty channel-section chassis with two pneumatic tires (6.50-16 or 7.50-16 depending on model) and a towing hitch rated for road transport up to 20 km/h. Four adjustable jack legs provide maximum stability throughout the mixing cycle — when deployed, the mixer is fully self-supporting and requires no concrete foundation or anchor bolts. The integrated water system uses a time-relay-controlled water pump (0.55–1.1 kW) with ±2% dosing accuracy, ensuring consistent water-to-cement ratios across batches without operator guesswork. A discharge height of 1,370 mm (standard) allows direct loading into wheelbarrows, concrete buggies, or mixer trucks, eliminating double-handling of fresh concrete on site.

Case 1: Rural Road Project — Oyo State, Nigeria

Equipment: 2 × JZR 500 (Diesel, 500L) Project: 12 km rural access road connecting 6 villages to the Ibadan–Oyo highway. Road width 6 m, slab thickness 150 mm, C25 concrete specification.

Challenge: No grid electricity within 5 km of the alignment. Nearest ready-mix plant was 80 km away with 4-hour delivery time — concrete would lose workability before placement.

Solution: Two JZR 500 diesel drum mixers were towed to the project site and positioned at 3 km intervals along the alignment. Aggregates were stockpiled at each station; the hydraulic hopper lift allowed direct loading from ground-level stockpiles without wheel loader assistance. Each mixer produced 18 m³/h, and the two units working in parallel supplied 36 m³/h — sufficient for continuous paving at 240 m²/h.

Result:

Two additional JZR 500 units ordered for Phase 2

Project completed in 42 working days (vs. 70-day estimate with ready-mix delivery)

Concrete cost reduced from 145/m³ (ready-mix delivered) to 68/m³ (on-site mixed)

Total savings: $87,000 across 1,800 m³ of concrete

Case 2: Affordable Housing Development — Antipolo City, Philippines

Equipment: 1 × JZC 500 (Electric, 500L) Project: 120-unit low-cost housing development, 3-story row houses, slab-on-grade foundations, C20 concrete for footings and C25 for slabs.

Challenge: Tight 1,200 m² site with no space for a batching plant setup. Ready-mix trucks could only access the site during off-peak hours due to narrow barangay roads, causing concrete placement delays of 2–3 hours per truck.

Solution: A single JZC 500 electric drum concrete mixer was installed at the site entrance with a temporary aggregate bin. The mixer’s 5,230 × 2,300 mm footprint fit between the site gate and the first building row. The hydraulic hopper lift was fed by a 0.5-ton mini dumper; the ±2% water dosing accuracy ensured consistent C25 strength (28-day cylinder test: 27.4 MPa average, σ = 1.8 MPa — well within acceptable variation).

Result:

Mixer retained for the contractor’s next 3 projects

45 m³/day on-site production, matching the contractor’s daily placement schedule

Ready-mix dependency eliminated entirely after Day 3

Concrete cost reduced from 132/m³ to 71/m³

Payback on the $6,200 FOB mixer investment: Day 47 of the project

Case Study 3: Precast Boundary Wall Factory — Nairobi, Kenya

Equipment: 1 × JZC 750 (Electric, 750L) + 1 × JZR 350 (Diesel, 350L backup) Project: Precast concrete boundary wall panel and post factory, supplying perimeter walls for a 200-acre industrial park development. Daily output: 300 panels (1.2 × 2.4 m) + 400 posts.

Challenge: The factory needed to produce two concrete grades simultaneously — C30 for posts (higher strength, smaller aggregate) and C20 for panels (standard mix, larger aggregate). A single stationary mixer could not switch mixes fast enough.

Solution: The JZC 750 was dedicated to panel production (C20, 60–80 mm aggregate) running at 22 m³/h, while the JZR 350 handled post production (C30, 20 mm aggregate) at 12 m³/h. The hydraulic hopper lift on both units allowed rapid batch cycling — average 90-second mixing cycle for the JZC 750 and 60 seconds for the JZR 350. The diesel-powered JZR 350 also served as backup during power outages, which occurred 2–3 times per week.

Result:

Factory added a second JZC 750 after 4 months to expand to 60 m³/day capacity

Combined daily output: 34 m³ — meeting the factory’s 30 m³/day target with 13% buffer

Batch switching time between C20 and C30: zero (dedicated mixers)

Downtime from power outages eliminated (diesel backup)
